36" Shower

Powder coated aluminum shower stalls offer a ready to install solution to keep you clean while on the road in all weather conditions and locations.

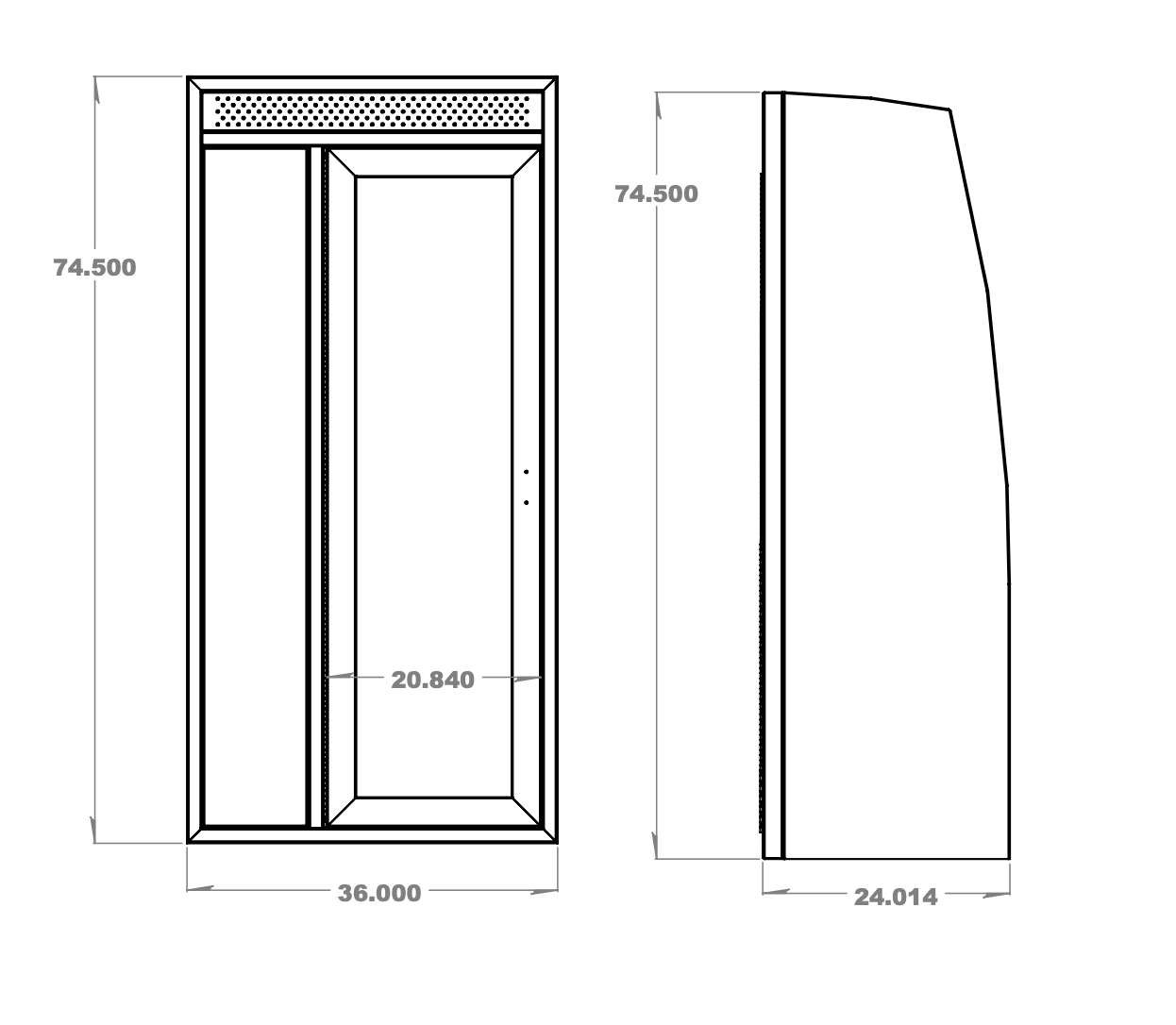

Dimensions

36"w x 74.5"h x 24"d

Materials

Shower is an all powder coated aluminum material, including the pan, which will be matched in color.

• Ships knocked down and requires assembly
• Ventilation holes above door
• Holes for assembly are pre drilled for rivets provided
• Customer responsible for plumbing, including adding a drain (not included)
• Shower seams should be siliconed after installation to create a water tight seal
• Pan is not sloped, as drain locations will vary by customer and vans sit at different angles depending on parking
• Shower curtain on interior of unit is required and needs to be purchased separately (we suggest hanging with a small tension rod from Amazon/Walmart/etc)
• We recommend use of a teak shower mat for comfort
• All showers are 24" deep and 74.5" high. Widths are 24", 30", 33", or 36".
• Door is 20.8” wide to open an appropriate distance into the van.
• We suggest cleaning with a mild detergent such as Dawn or Simple Green cleaners. Please use a cloth, sponge, or soft bristled brush, but not abrasive scrubbers or harsh chemicals to avoid damaging the powder coat.

To assemble:

• After identifying a location for your pan and drain, place rear panel behind the pan and attach side panels using rivets.
• Attach front door panel using rivets or bolts.
• Insert ceiling panel last (any electrical for lighting can be done prior to this step) and rivet or bolt in place.
• We recommend fastening to the van using the floor drain and fasteners of your choice through the top of the shower into the van’s framing members.
• Additional rivet holes can be drilled if needed, however are not required
• Silicone seams to create a water tight unit

This product will ship via freight carrier on a pallet. We strongly recommend choosing a shipping address that can accommodate a truck. Please review our freight policies and inspect your shower upon receipt for freight damage. All freight damage or other shipping issues must be reported in a timely manner according to our freight policy.
