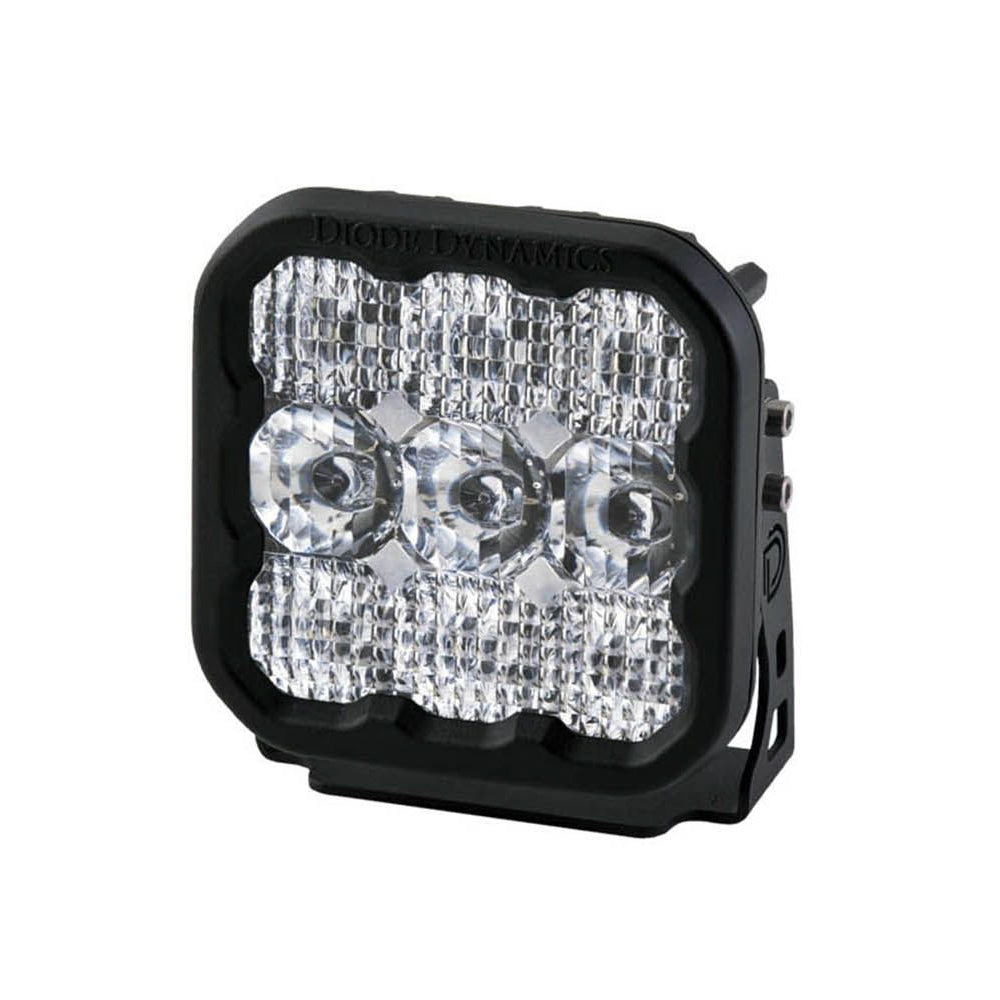

diode dynamics ss5 pro white combo single led light pod 5"
diode dynamics ss5 pro white combo single led light pod 5"

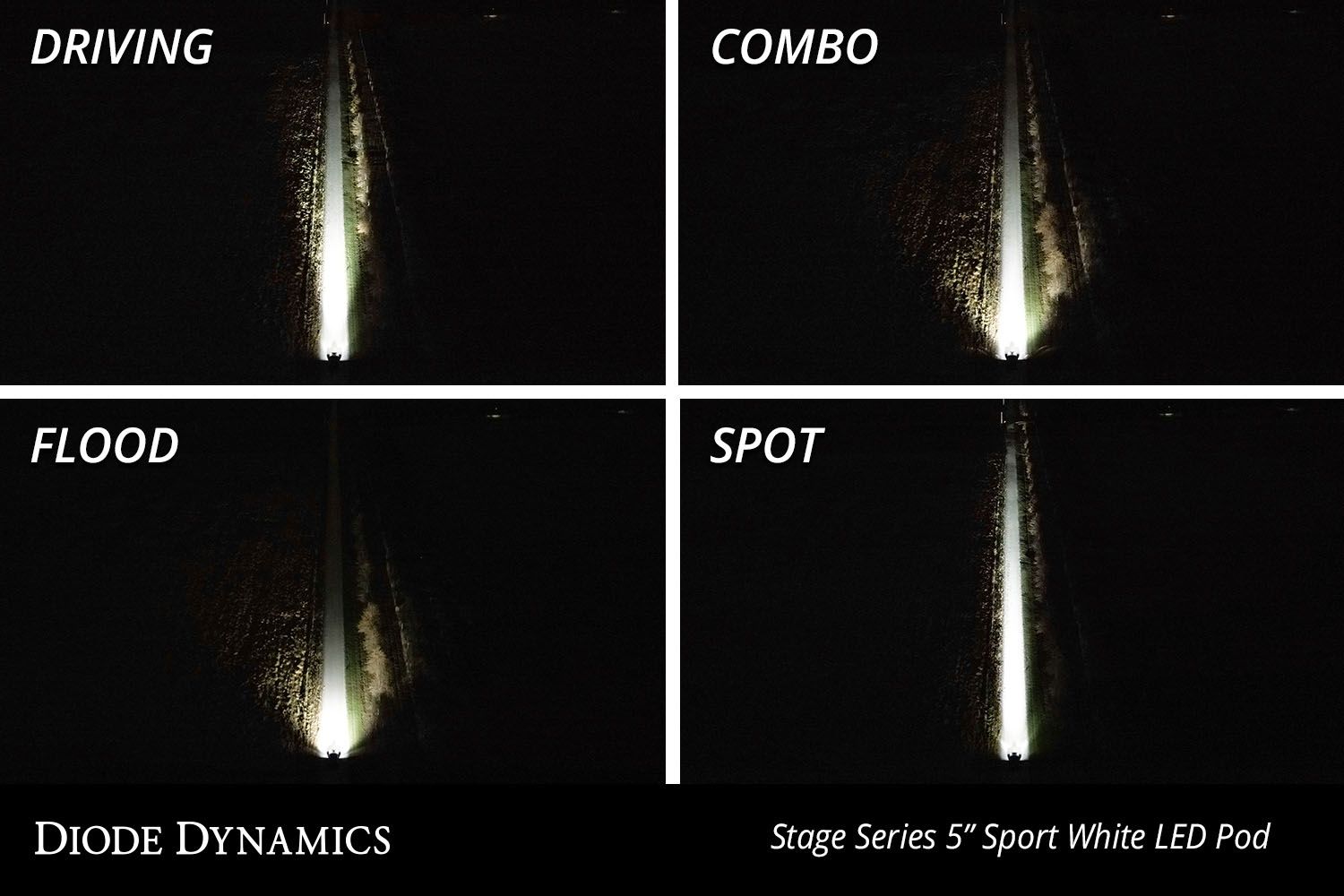

diode dynamics ss5 pro white combo single led light pod beam pattern

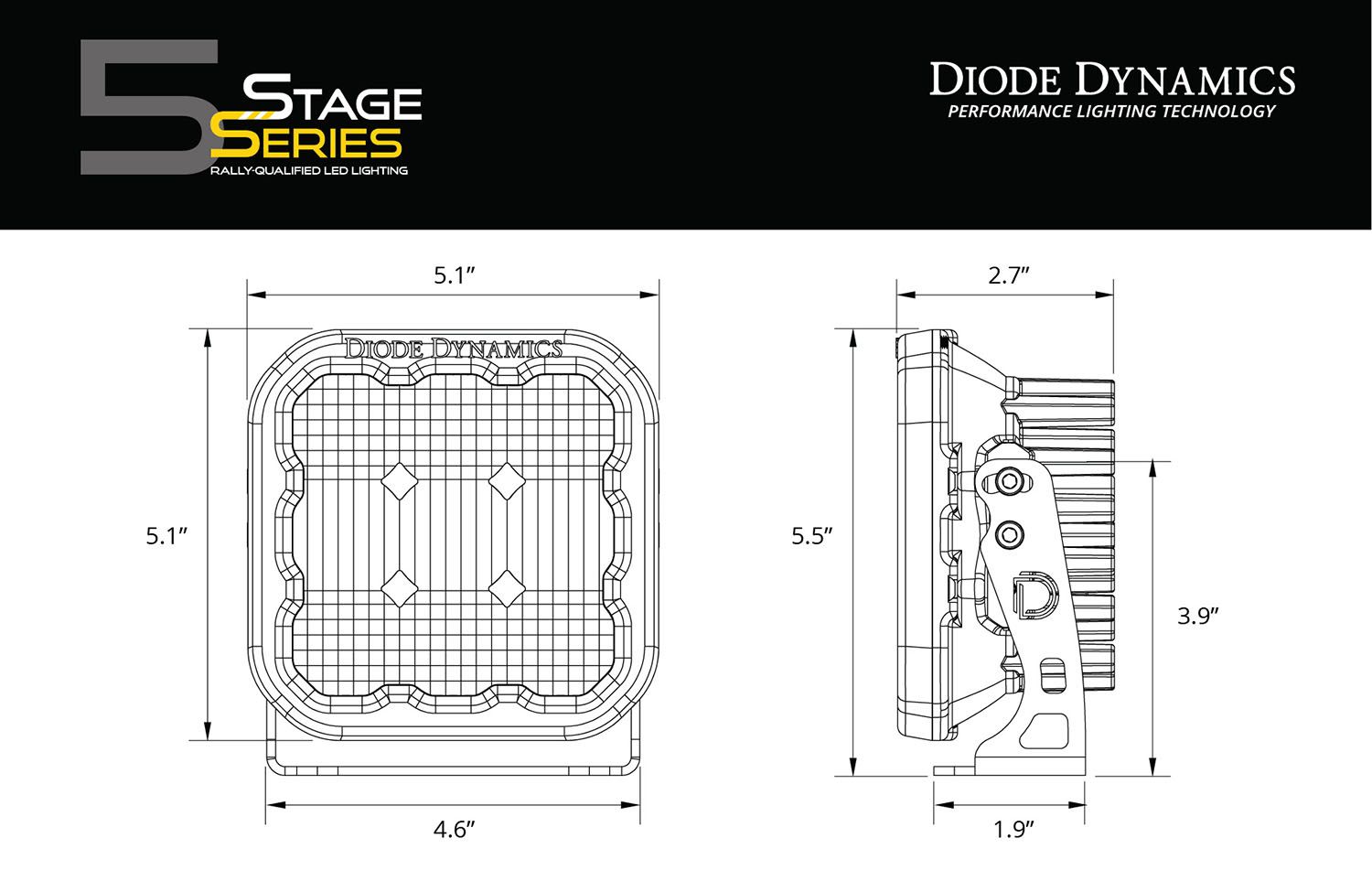

diode dynamics ss5 pro white combo single led light pod dimensions

Diode Dynamics SS5 Pro Combo 5" LED Pod (single) - White

Sale price$307.96 Regular price$310.00
Save $2.04
Made for
Install available

Introducing the SS5 5" LED Pod! Featuring the highest output intensity of any 5-inch LED pod on the market, these auxiliary lamps have been designed for maximum functionality, with patented technology and custom-engineered TIR optics, all in a durable package.

Combo pattern combines both the Driving and Flood optics, perfect for all-around use. It shines light downrange in a focused 30x20 Driving beam to punch with distance, and fills in the surrounding area to create a full 70x30 degree pattern. With a row of driving optics in the middle, and a flood optic on the top and bottom, this has been designed to provide extra light for every situation.


**DOES NOT INCLUDE MOUNTING BRACKET

Why you'll love it

Diode Dynamics SS5 Pro Combo 5" LED Pod (single) - White

The Combo pattern combines both the Driving and Flood optics, perfect for all-around use. It shines light downrange in a focused 30x20 Driving beam to punch with distance, and fills in the surrounding area to create a full 70x30 degree pattern. With a row of driving optics in the middle, and a flood optic on the top and bottom, this has been designed to provide extra light for every situation.

diode dynamics ss5 pro white combo single led light pod 5"

Highlights

  • Engineered TIR (total internal reflection) optics
  • Selectable backlight color, with eight color options
  • Built-in linking feature, build up to 50" bar
  • Torture-tested, heavy-duty construction
  • Ultra-high intensity: shines almost mile away
  • Assembled in USA

Our patent-pending CrossLink technology allows you to link up to eight SS5 pods together to create your own lightbar. Unlike other options on the market that use multiple pieces to link pods together, we have designed a single-piece CNC aluminum link. This provides extreme rigidity, but is fully adjustable, for both straight and curved configuration.

Know before you buy

Fit, specs + what's in the box

Will it fit my vehicle?

Made for:

Not sure it works with your build? Ask our team before you order.

Specs

Weight3.0 lb
  • Color Temp (CCT):6000K
    Power (watts):Main Beam: 90, Backlight: 3.17
    Operating Voltage:    9-16V
    Current (amps @ 12.8V):Main Beam: 6.7, Backlight: 0.25
  • Polarity:Polarity Specific
  • Operating Temperature:-40C to 85C (-40F to 185F)
  • LED Emitter:Cree XP-L HI
  • Connector(s):Deutsch DT Input
  • Driver Features:Constant Current
  • Materials:Polycarbonate Lens, Aluminum Casting, Rubber Gasket
  • Cooling:Passive, Pin-Fin heatsink
  • Compliance Ratings:SAE J575 Durability Test
  • Intrusion Ratings:IP69K Waterproof, High Pressure
  • Product Dimensions (in):5.1 x 5.1 x 2.7

What's in the box

  • One (1) Stage Series 5” LED Pod
  • One (1) Deutsch-style wire pigtail

DOES NOT INCLUDE MOUNTING BRACKET OR HARDWARE
